CILINDROS HIDRAULICOS
SEMI-BLINDADOS MODELO CHA

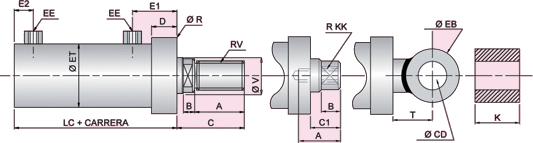

DIMENSIONES GENERALES


|  N: Vástago normal   -   I: Vástago intermedio   -   S: Vástago super  |
Ĝ INTERIOR
CILINDRO		 1,5" 2" 2,5" 3" 3,25" 3,5" 4" 4,5" 5" 6" 8" 10"
ĜV N 19 22,22 25.40 31.75 31.75 38.10 44.45 44.45 50.80 63.50 76.20 88.90
I 22.22 25.40 31.75 38.10 38.10 44.45 50.80 50.80 63.50 76.20 88.90 101.60
S 25.40 31.75 38.10 44.45 50.80 50.80 63.50 63.50 76.20 88.90 101.6 115
RV
(UNF)		 N 9/16 5/8 3/4 1 1 1 1/8 1 1/4 1 1/4 1 1/2 2 2 1/2 3
I 5/8 3/4 1 1 1/8 1 1/8 1 1/4 1 1/2 1 1/2 2 2 1/2 3 3 1/2
S 3/4 1 1 1/8 1 1/4 1 1/4 1 1/2 2 2 2 1/2 3 3 1/2 4
RKK
(UNF)		 N 1/2 5/8 3/4 7/8 7/8 1 1/8 1 1/4 1 1/4 1 1/2 1 7/8 2 2 1/2
I 5/8 3/4 7/8 1 1/8 1 1/8 1 1/4 1 1/2 1 1/2 1 7/8 2 2 1/2 3
S 3/4 7/8 1 1/8 1 1/4 1 1/2 1 1/2 1 7/8 1 7/8 2 2 1/2 3 3 1/4
A N 25 25 30 40 40 45 50 50 60 70 80 90
I 25 30 40 45 45 50 60 60 70 80 90 100
S 30 40 45 50 50 60 70 70 80 90 100 120
B N 13 13 13 15 15 18 20 20 23 25 28 33
I 13 13 15 18 18 20 23 23 25 28 33 33
S 13 15 18 20 20 23 25 25 28 33 33 33
C N 43 43 48 60 60 68 75 75 88 100 113 128
I 43 48 60 68 68 75 88 88 100 113 128 138
S 48 60 68 75 75 88 100 100 113 128 138 158
C1 20 20 25 25 25 30 30 30 35 40 40 40
D 33 33 33 33 33 33 33 33 33 50 50 50
LC 126 130 135 150 150 150 150 150 150 185 265 300
Ĝ ET 48 60 76 89 95 101 114 127 141 168 219 273
Ĝ R 58 72 89 102 114 116 128 141 152 185 235 290
EE (NTP) 3/8 3/8 3/8 1/2 1/2 1/2 1/2 1/2 3/4 3/4 3/4 1
E1 55 55 55 55 55 55 55 55 55 70 80 80
E2 17 17 17 17 17 17 17 17 17 17 40 40
T 25 30 35 40 40 40 45 45 55 65 70 80
K 30 35 45 55 60 60 70 70 85 100 120 130
Ĝ EB 25 30 38 44 50 50 60 60 75 85 90 100
Ĝ CD 12.70 15.80 19.10 22.22 25.40 25.40 31.80 31.80 38.10 44.45 50.80 63.50
